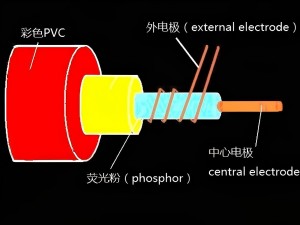

Electroluminescent wire is also called flexible neon wire and cold wire. Its luminous principle is to stimulate the luminescent material to emit light by loading the alternating electric field of the two poles. When light penetrates the PVC outer sheath of different colors, different colors of light can be achieved.
Characteristics:
- The luminescence is uniform and soft, and the continuous luminous length of a single wire can reach 400m, and the brightness and uniformity of the luminous light at the beginning and end will not change.
- When working, there is no heat radiation, which is more energy-saving than LED.
- It is soft, bendable, and knotted, and can be cut to any length as needed.

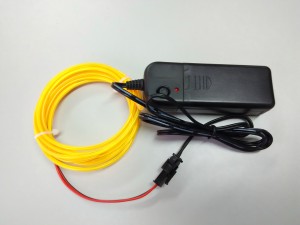

- It needs to be used with a professional EL driver. Luminous conditions: 80~150V 400~2000Hz.
EL wire specification is mainly divided into two categories:
Flexible wire (S series) and hard wire (H series), there are 13 colors and 10 specifications.

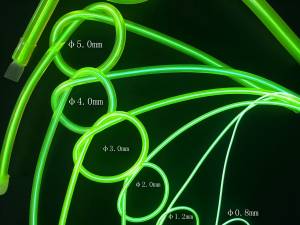

EL wire color code & diameters:
ITEM NO. | Diameter/mm | Weight g/m |
UM300 | 0.3 | / |
S0.8 | 0.8 | 1.4 |
S1.2 | 1.2 | 3.5 |
S2.0 | 2.0 | 6.5 |
S3.0 | 3.0 | 11.5 |
S4.0 | 4.0 | 17 |
S5.0 | 5.0 | 26 |
S8.0 | 8.0 | 62.5 |
S12 | 12.0 | 120.4 |
S14 | 14．0 | 142.6 |
SX3-6 | 3 color chasing EL wire Φ6mm | 38.8 |
SX-1.2 | one color 3 cores chasing EL wire | 1.7g/m
|
SD-2.0 | Welt EL wire Φ2.0-5 | 11.5 |
SD-4.0 | Welt EL wire Φ4.0-7 | 26 |
SH-3.2 | with base Φ3.2 | 17 |
SL5.0 | SCREW SHAPE Φ5.0 | 25 |
SX2 | 2 cores Φ5.0 | 35.8 |
SF3-10 | 3 cores in parallel 10X3 | 62.4 |
SZ2.5 | Angled 2.0-10 | 48 |
SD2-2.3 | Double welt Φ2.3-11 | 14.2 |
SH-5.0 | With base Φ5.0 | 32.3 |
Hard EL wire

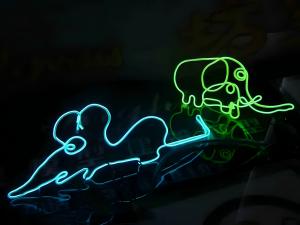

Used to make small luminous shapes or pendants.
| ITEM NO. | Diameter/mm | Weight g/m | Caption |
| H2.0 | 2.4 | 15 | Can be bent repeatedly |
| H4.0 | 4.7 | 45 | Can be bent repeatedly |
